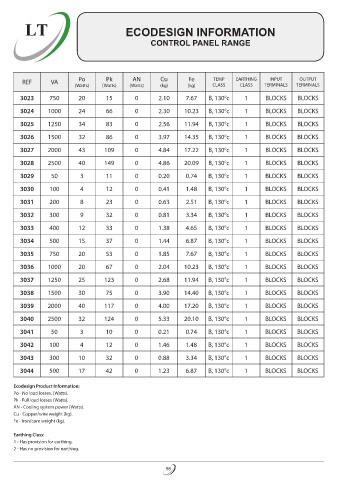

LT ECODESIGN INFORMATION

CONTROL PANEL RANGE

REF VA Po Pk AN Cu Fe TEMP EARTHING INPUT OUTPUT
(Watts) (Watts) (Watts) (kg) (kg) CLASS CLASS TERMINALS TERMINALS
3023 750 20 15 0 2.10 7.67 B, 130°c 1 BLOCKS BLOCKS

3024 1000 24 66 0 2.30 10.23 B, 130°c 1 BLOCKS BLOCKS
3025 1250 34 83 0 2.56 11.94 B, 130°c 1 BLOCKS BLOCKS
3026 1500 32 86 0 3.97 14.35 B, 130°c 1 BLOCKS BLOCKS
3027 2000 43 109 0 4.84 17.22 B, 130°c 1 BLOCKS BLOCKS
3028 2500 40 149 0 4.86 20.09 B, 130°c 1 BLOCKS BLOCKS
3029 50 3 11 0 0.20 0.74 B, 130°c 1 BLOCKS BLOCKS
3030 100 4 12 0 0.41 1.48 B, 130°c 1 BLOCKS BLOCKS
3031 200 8 23 0 0.63 2.51 B, 130°c 1 BLOCKS BLOCKS
3032 300 9 32 0 0.81 3.34 B, 130°c 1 BLOCKS BLOCKS
3033 400 12 33 0 1.38 4.65 B, 130°c 1 BLOCKS BLOCKS
3034 500 15 37 0 1.44 6.87 B, 130°c 1 BLOCKS BLOCKS
3035 750 20 53 0 1.85 7.67 B, 130°c 1 BLOCKS BLOCKS
3036 1000 20 67 0 2.04 10.23 B, 130°c 1 BLOCKS BLOCKS
3037 1250 25 123 0 2.68 11.94 B, 130°c 1 BLOCKS BLOCKS
3038 1500 30 75 0 3.90 14.40 B, 130°c 1 BLOCKS BLOCKS
3039 2000 40 117 0 4.00 17.20 B, 130°c 1 BLOCKS BLOCKS
3040 2500 32 124 0 5.33 20.10 B, 130°c 1 BLOCKS BLOCKS
3041 50 3 10 0 0.21 0.74 B, 130°c 1 BLOCKS BLOCKS
3042 100 4 12 0 1.46 1.48 B, 130°c 1 BLOCKS BLOCKS
3043 300 10 32 0 0.88 3.34 B, 130°c 1 BLOCKS BLOCKS
3044 500 17 42 0 1.23 6.87 B, 130°c 1 BLOCKS BLOCKS
Ecodesign Product Information:
Po - No load losses. (Watts).
Pk - Full load losses (Watts).
AN - Cooling system power (Watts).
Cu - Copper/wire weight (kg).
Fe - Iron/core weight (kg).
Earthing Class:
1 - Has provision for earthing.
2 - Has no provision for earthing.
