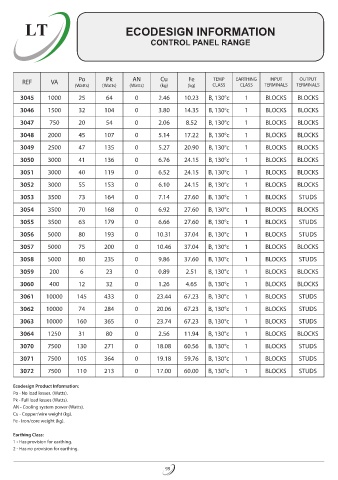

LT ECODESIGN INFORMATION

CONTROL PANEL RANGE

REF VA Po Pk AN Cu Fe TEMP EARTHING INPUT OUTPUT
(Watts) (Watts) (Watts) (kg) (kg) CLASS CLASS TERMINALS TERMINALS
3045 1000 25 64 0 2.46 10.23 B, 130°c 1 BLOCKS BLOCKS
3046 1500 32 104 0 3.80 14.35 B, 130°c 1 BLOCKS BLOCKS
3047 750 20 54 0 2.06 8.52 B, 130°c 1 BLOCKS BLOCKS
3048 2000 45 107 0 5.14 17.22 B, 130°c 1 BLOCKS BLOCKS
3049 2500 47 135 0 5.27 20.90 B, 130°c 1 BLOCKS BLOCKS
3050 3000 41 136 0 6.76 24.15 B, 130°c 1 BLOCKS BLOCKS
3051 3000 40 119 0 6.52 24.15 B, 130°c 1 BLOCKS BLOCKS
3052 3000 55 153 0 6.10 24.15 B, 130°c 1 BLOCKS BLOCKS
3053 3500 73 164 0 7.14 27.60 B, 130°c 1 BLOCKS STUDS
3054 3500 70 168 0 6.92 27.60 B, 130°c 1 BLOCKS BLOCKS
3055 3500 63 179 0 6.66 27.60 B, 130°c 1 BLOCKS STUDS
3056 5000 80 193 0 10.31 37.04 B, 130°c 1 BLOCKS STUDS
3057 5000 75 200 0 10.46 37.04 B, 130°c 1 BLOCKS BLOCKS
3058 5000 80 235 0 9.86 37.60 B, 130°c 1 BLOCKS STUDS
3059 200 6 23 0 0.89 2.51 B, 130°c 1 BLOCKS BLOCKS
3060 400 12 32 0 1.26 4.65 B, 130°c 1 BLOCKS BLOCKS
3061 10000 145 433 0 23.44 67.23 B, 130°c 1 BLOCKS STUDS
3062 10000 74 284 0 20.06 67.23 B, 130°c 1 BLOCKS STUDS
3063 10000 160 365 0 23.74 67.23 B, 130°c 1 BLOCKS STUDS
3064 1250 31 80 0 2.56 11.94 B, 130°c 1 BLOCKS BLOCKS
3070 7500 130 271 0 18.08 60.56 B, 130°c 1 BLOCKS STUDS
3071 7500 105 364 0 19.18 59.76 B, 130°c 1 BLOCKS STUDS
3072 7500 110 213 0 17.00 60.00 B, 130°c 1 BLOCKS STUDS
Ecodesign Product Information:
Po - No load losses. (Watts).
Pk - Full load losses (Watts).
AN - Cooling system power (Watts).
Cu - Copper/wire weight (kg).
Fe - Iron/core weight (kg).
Earthing Class:
1 - Has provision for earthing.
2 - Has no provision for earthing.
